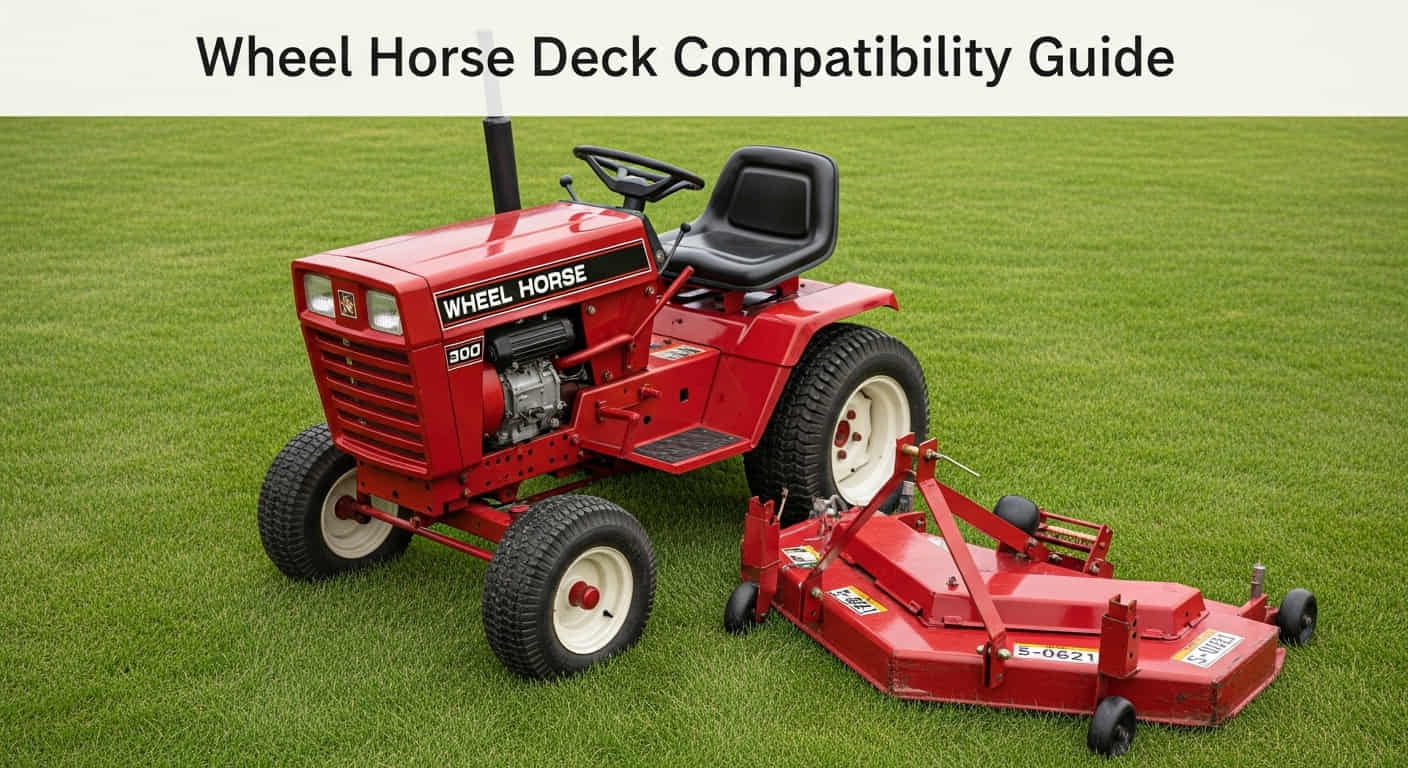

If you’re wondering whether a Wheel Horse 5-0621 36″ rear-discharge deck will bolt onto a 300 Series garden tractor, the quick answer is no – not without major changes. The 5-0621 deck is an older design (from early 1970s Wheel Horse “B/C” series tractors) and it uses a different mounting system than the 300 series tractors (mid-1970s “Attachomatic” models). In fact, Wheel Horse experts say “not compatible as is” when it comes to fitting a 5-0621 deck on a 300 Series. In short, you’d need to swap out the deck’s entire front frame and brackets – basically a custom fabrication job – to make it work. It’s much easier to use a deck actually made for the 300/400/500-series tractors.
Why the 5-0621 Deck and 300 Series Tractors Don’t Match
- Different attachment systems. The 300 Series tractors (like models 312-8, 314-A, etc.) use Toro’s “Attachomatic” quick-connect system. This means the tractor has built-in brackets and lift arms that latch into a special upper deck frame. The old 5-0621 deck, however, predates this design and was made for the older Wheel Horse tractors with vertical engines and pin-style brackets. Because of this, the holes and lift points on the 5-0621 simply won’t line up with the 300 Series’ attach points.
-
Different deck frame and mounts. Even though the deck shell size is the same (both are 36″ wide), the frame that holds the blades and pivots must match the tractor. The 5-0621 deck’s upper frame, front hitch pin, and lift pivot were built for B/C-series tractors. A 300 Series has a longer wheelbase (as a “long-frame” tractor), and its deck frame is built differently. In practical terms, the 300 Series’ deck bracket and lift arms won’t accept the old deck’s hardware. As one forum expert put it, the 300-series deck “shell and spindles” may match, but “the rest is different”.
-
Attach-o-Matic vs. Attach-a-Matic. Wheel Horse terminology can be confusing. The 300 Series used a refined “Attachomatic” design where the tractor’s frame has a built-in slot for the deck, whereas the older tractors used an “Attach‑a‑Matic” kit with separate pins and brackets. Converting a 5-0621 deck to the new system would require replacing its entire front frame with a 300-series style frame (or welding on custom adapters). In short, it’s more work than it’s worth.
In summary, nearly every experienced Wheel Horse owner will tell you: “Short answer, no it is not compatible”. The official decks chart and parts manuals simply do not list the 5-0621 under the 300 Series (for a reason). Even if the deck physically spans the right distance – the 5-0621 was indeed listed as fitting medium and long-frame tractors (and a 300 is a long-frame model) – the attach points are wrong.

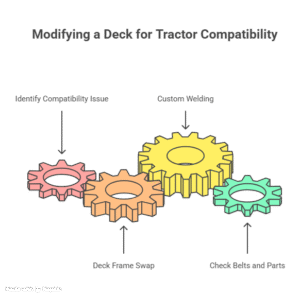

Why a Direct Swap Requires Major Modifications
Because of the mismatched hardware, using a 5-0621 deck on a 300 Series tractor would require major fabrication or a parts swap:
-
Deck frame swap. You would need the upper deck frame and mounting brackets from a 300-series-compatible deck. In practice, that means finding a wrecked or junk 36″ deck made for a 300/400/500 series (or a rare NOS frame) and moving it onto the 5-0621 deck shell. The shell and spindles (the cutting deck housing) could remain the same, but the whole front “hangers” and hitch must be replaced. One forum user noted that enthusiasts sometimes “find a rotted deck with usable mounts” and transplant them.
-
Custom welding. Alternatively, you could fabricate an adapter. This would involve welding new brackets or holes into the 5-0621 frame to mimic the 300 series mount points. That’s a precise, heavy-duty job – not a minor DIY tweak. One expert said it would take “custom fabrication” to swap in a 300-series upper frame and mounts.
-
Belts and parts. Even if you got the frame sorted, you’d have to double-check belt lengths, pulleys and linkages. The 5-0621’s belt sizes (e.g. the 102741 or 102607 belts shown in its manual) might not match exactly if the engine/deck spacing is different on a 300 Series tractor.
All this work generally isn’t worth the effort. The quicker solution is to use a deck built for the 300 Series.
What Deck Should You Use Instead?
If you have a 300 Series garden tractor, the best bet is to find a deck designed for the 300/400/500-series models. These decks will have the correct Attachomatic mounting hardware out of the box. Here’s what to look for:
-
Compatible model numbers. Wheel Horse decks for the 300, 400 and 500 Series tractors often share parts and frames. For example, a 36″ deck marked for a 300 series (or even a 400/500 series) will drop right in. Check dealers or used-parts listings for “36″ 300 series deck” or similar. The parts manuals will list the proper part numbers.
-
Correct frame and brackets. Even if you find a used deck shell (the painted steel body) by itself, make sure it comes with the front support frame and hitch pins designed for the Attachomatic system. Without that frame, the deck won’t latch onto your tractor.
-
Width and clearance. Make sure the deck width matches your tractor’s wheelbase. The 5-0621 is 36″, which is a common size. If your 300 Series tractor originally had a 36″ deck, get a 36″ one. (If it had 42″ or 48″, note that too.) Also ensure the deck’s height clears your engine pulley—300-series tractors often have a slightly higher belt drop.
-
Used or NOS. Many riders search eBay, forums or local classifieds for “Wheel Horse 300 Series deck” or even specific part numbers. Sometimes you’ll see “NOS” (new old stock) frames or full decks. According to Wheel Horse enthusiasts, an NOS deck for the right price can be an easier path than modifying an old deck.
-
Complete vs. parts. In practice, it’s often easiest to find a complete deck assembly (deck + frame + wheels + belts) from a junk 300-series tractor. Salvage yards or Wheel Horse collectors sometimes sell “deck complete” setups. This saves you the headache of mixing and matching parts.
Summary
In plain terms: a Wheel Horse 5-0621 deck won’t just bolt onto a 300 Series tractor. The early deck was made for a different era of Wheel Horse machines, and the later 300 Series has a unique Attachomatic mount. To use a 5-0621 on a 300, you’d basically have to rebuild the deck’s front end to match a 300-series deck frame – a big custom project.
Instead, look for a mower deck specifically listed for 300, 400 or 500 Series Wheel Horse tractors. Those decks will have the right upper frame, bracket pins and belt arrangement for your machine. Finding a correct deck (new or used) will save you a lot of headaches compared to trying to force the 5-0621 deck to fit.
